GENERAL FEATURES

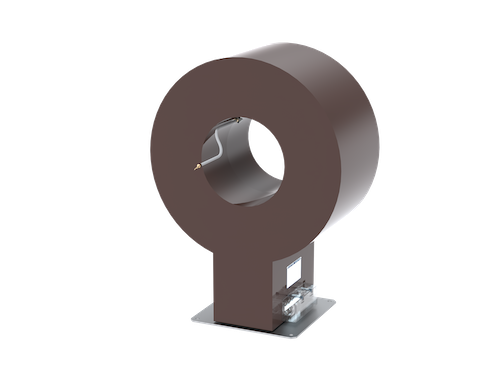

A medium voltage dry type current transformer for non isolated wires or bars passage.

✓ Standard : IEC 61869-2 | CSA C61869-2 | IEEE C57-13 ✓

Diameters available (Ød) : 200mm | 240mm ✓

Ambient temperature : up to -25/+40°C

ELECTRICAL FEATURES

✓ Insulation level : up to 24/50/125kV

✓ Frequency : 50Hz | 60Hz

✓ Primary current (In) : up to 8000A

✓ Rated short-time thermal current (Ith) : up to 200*In 1s

✓ Rated dynamic current (Idyn) : up to 2.5 * Ith

✓ Number of cores : 1 to 4

✓ Double ratio : by secondary tap

✓ Accuracy class (IEC) : 0.1 | 0.2 | 0.2S | 0.5 | 0.5S | 1 | 3 | 5 | 5P | 10P | 5PR | 10PR | PX

✓ Accuracy class (CSA) : 0.15 | 0.15S | 0.3 | 0.6 | 1.2 | 2.5L ..| 10L..

✓ Accuracy class (IEEE) : 0.15 | 0.3 | 0.6 | 1.2 | C.. Dimensions in mm Information given for illustrative purposes. For any other features or need, contact us. MECHANICAL FEATURES

✓ Approximate weight : 115kg

✓ Potential lead to primary bars (voltage >= 12kv) : lug Ø 6mm

✓ With sealable cover OPTIONS

✓ Without baseplate

✓ Without sealable cover MEDIUM VOLTAGE INDOOR CURRENT TRANSFORMER INSTRUMENT TRANSFORMERS 671, Rue Maurice Caullery – ZI Douai Dorignies – 59506 DOUAI cedex – France Phone : (33) 03 59 61 15 60 www.sadtem.com contact@sadtem.com FTP014_GB Rev : 00/05-21
