Instrument Transformers

12kV Solutions

1 HV pole (phase to ground)

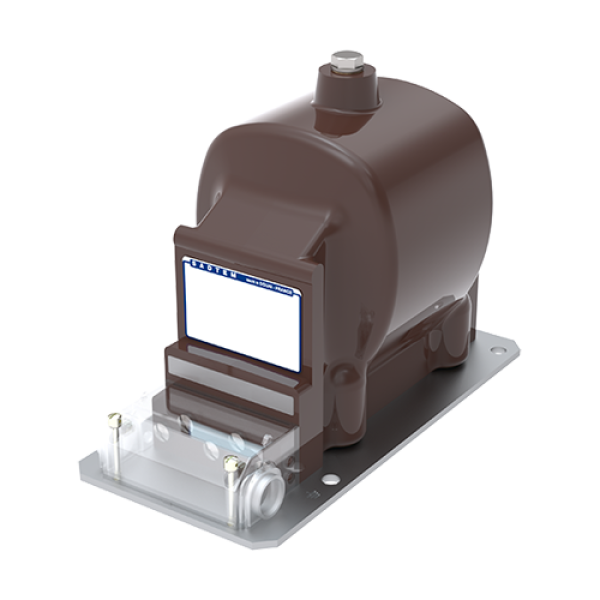

Y12P

Y12P

GENERAL FEATURES

One HV pole voltage transformer, compact and dry insulated for indoor application. ✓ Standard : IEC 61869-3 ✓ Ambient temperature : up to -25/+40°C

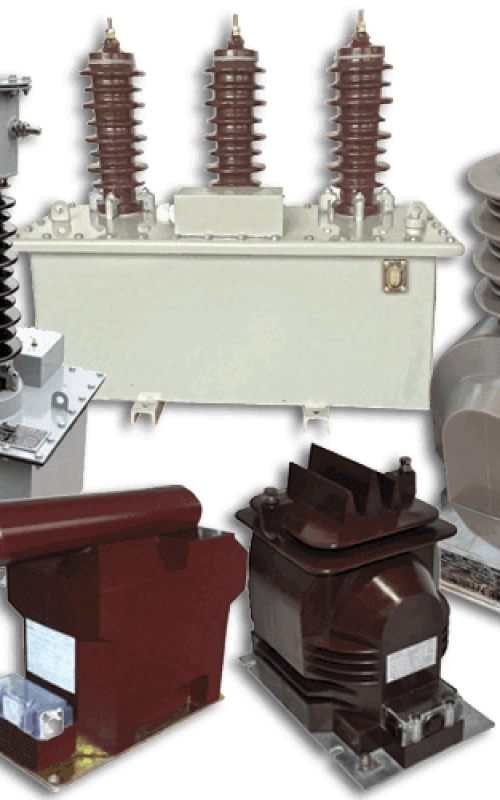

voltage-transformer-1

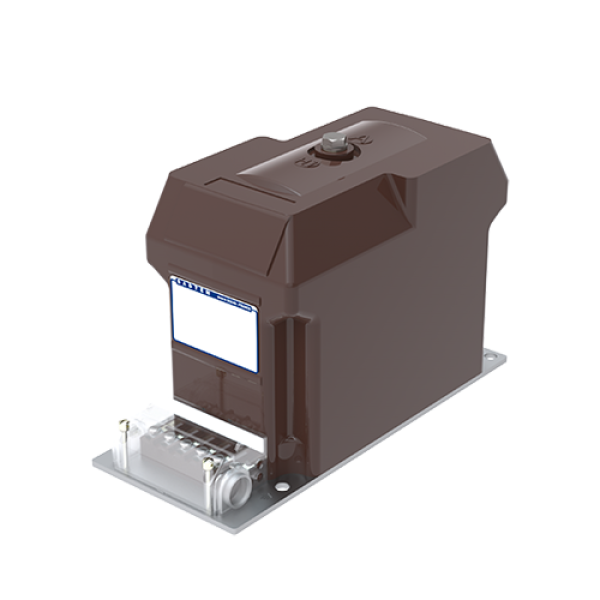

Y12G

GENERAL FEATURES

One HV pole voltage transformer, compact and dry insulated for indoor application. ✓ Standards : IEC 61869-3 | CSA C61869-3 | IEEE C57-13 ✓ Ambient temperature : up to -25/+40°C

2 HV poles (phase to phase)

Y12G

V12P

GENERAL FEATURES

Two HV poles voltage transformer, really compact and dry insulated for indoor application.

✓ Standard : IEC 61869-3

✓ Ambient temperature : up to -25/+40°C

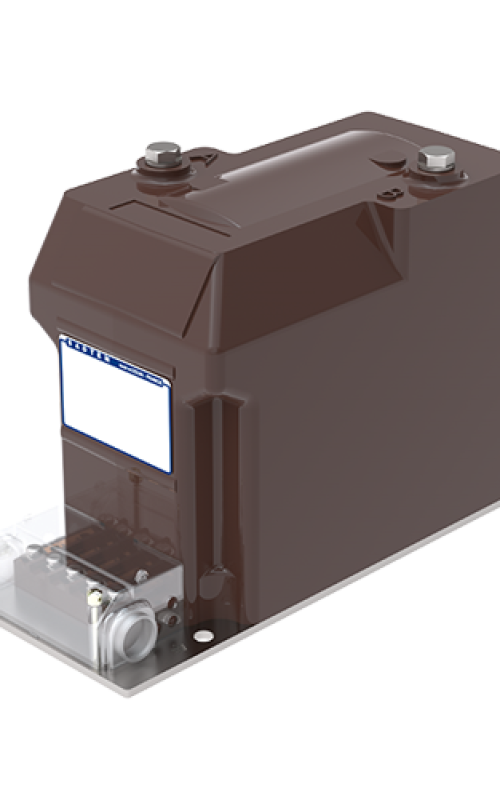

V12G
V12G

GENERAL FEATURES

Two HV poles voltage transformer, compact and dry insulated for indoor application.

✓ Standards : IEC 61869-3 | CSA C61869-3 | IEEE C57-13

✓ Ambient temperature : up to -25/+40°C
